High production dryer for mid to large sized shops that need outputs of 300* or 600* pcs/hr/chamber. A compact powerhouse with many advanced features such as: digital temperature control, power exhaust and air recirculation. Available in 30" and 54" (76 and 137 cm) belt widths.

ADVANCED
New Focused Exhaust Air System evacuates fumes and moisture quickly
HEAVY DUTY
"X-Series" Conveyor Belt Tracking System
PRECISE
Infrared Focusing System provides more power for less $$
ADJUSTABLE
2" - 7" (5 - 17.7 cm) belt-to-heater height adjustment
ACCURATE
Digital PID Temperature controller is accurate to +/-1°F
CONSISTENT
Heavy duty DC belt speed motor with digital voltage display
INNOVATIVE
Engineered to be shorter and smaller with high heat and
production
EXPANDABLE
Add 3' (.91 m) chambers and/or 18" (46 cm) / 36" (91 cm) belt extensions
*Production speeds are estimates and will vary depending on ink manufacturer, humidity of shop, and other variables.

OPTIONS:
  • Locking casters for easy mobility
Compact production dryer available in belt widths of 30" or 54" (76 or 137cm) with speeds ranging from 190-380* pcs/hr/chamber. Excellent choice for small shops that require medium production capabilities with the added convenience of digital temperature control.

RELIABLE
15 Year Heater Warranty
HEAVY DUTY
"X-Series" Conveyor Belt Tracking System
with 30" (76 cm) wide Teflon coated fiberglass belt
PRECISE
Infrared Focusing System
ADJUSTABLE
2" - 7" (5 - 17.7 cm) belt-to-heater height adjustment
ACCURATE
Digital PID Temperature controller is accurate to +/-1°F
EXPANDABLE
Add 20" (51 cm) chambers and/or 18" (46 cm) belt extensions
WIDE
EC-I-54 has a 54" extra wide belt allows for "All-Over" Prints
to cure in single pass
*Production speeds are estimates and will vary depending on ink manufacturer, humidity of shop, and other variables.

OPTIONS:
  • Power exhaust to remove fumes/moisture within chamber and exit
         Excellent air flow to cool the skin of the dryer
         Cures plastisol, water-based and discharge inks
  • Scrub Air forced hot air
  • Locking casters for easy mobility

Entry level tabletop dryer with 18" (45.7 cm) wide conveyor belt
SMART
18" (46cm) wide Teflon coated fiberglass belt with tracking system
ADJUSTABLE
Speed, temperature, heater height and tilt
FAST
110+* shirts per hour with plastisol and 50+* with discharge
PRECISE
Powerful infrared heater with tight coil pattern and heat shields
VALUABLE
Best warranty, high quality, exceptional service
COMPACT
Total footprint is less than 8 sq.ft (2.44 sq.m)
.
Product Search
www.herwecks.com
Vastex Conveyor Dryers
Serving the San Antonio Art Community since 1948!
"One Stop Shop For Your Creative Mind"
    FINE ART SUPPLIES                     DRAFTING SUPPLIES                 SIGN SUPPLIES                    SCREEN PRINTING SUPPLIES                         T-SHIRT VINYLS
Mid-level, compact, floor standing, dryer with a 30" (76 cm) wide belt, digital temperature and belt speed display, controls and a single infrared heater of 120V/2000 watts or 240V/2600 watts. The 240 V model cures up to 130 plastisol-printed images or 45 discharge-printed images per hour, while the 120 V model cures up to 90 plastisol-printed images
or 45 discharge-printed images per hour. Expanded by adding modular heating chamber(s) and longer belt.

HEAVY DUTY
"X-Series" Conveyor Belt Tracking System with 30" (76 cm) wide Teflon coated fiberglass belt
POWERFUL
Single 2,000 or 2,600 Watt heater
ACCURATE
Digital PID Temperature controller is accurate to +/-1°F
ADJUSTABLE
2" - 7" (5 - 17.7 cm) belt-to-heater clearance, adjustable separately on each side for each heater
CONSISTENT
Low friction belt aligner and DC belt speed control with digital display
EXPANDABLE
Add 18" (46 cm) and 36" (92 cm) chambers and/or 18" (46 cm) belt extensions

OPTIONS:
Additional chambers can be added as well as belt extensions
Powered exhaust
Heavy duty belt motor (recommend for longer conveyor belts)
Locking casters for easy mobility

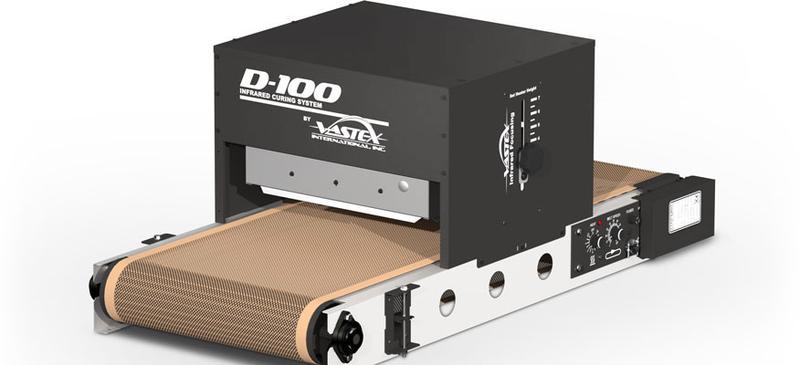

Vastex D-100 Dryer

Quantity:
Price includes shipping charges

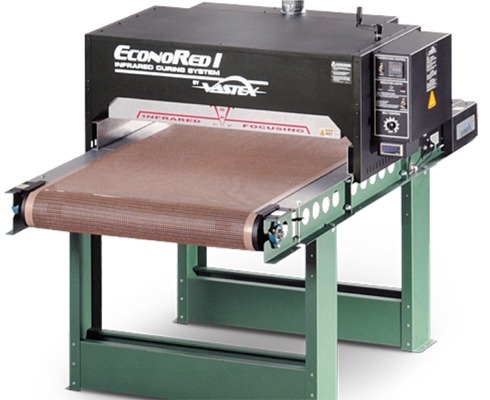

Vastex EconoRed I Dryers

Quantity:
Please call for freight charges 1-800-725-1349

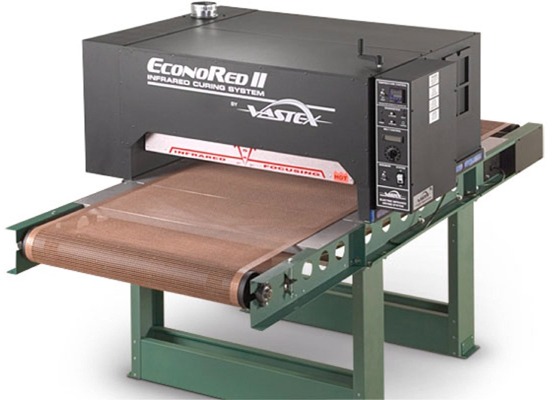

Vastex EconoRed II Dryers

Quantity:
Please call for freight charges 1-800-725-1349

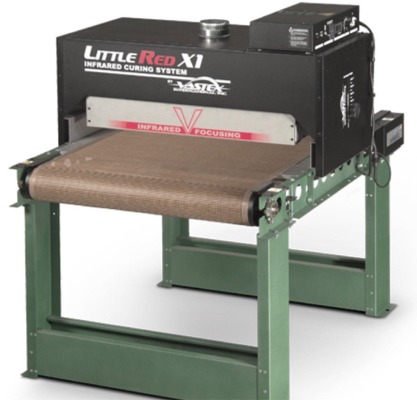

Vastex Little Red Dryer

Quantity:
Price includes shipping charges
