Vastex V-1000 Economy Printing Presses
Available Models:
4 Station/4 Color (V1-4/4)
4 Station/6 Color (V1 4/6)
Standard Features:
• Steel Pallets w/rubber top, interchangeable with the V-2000*
• Floating Head, three point bearing lock allows multiple heads down
• Micro-registration
• 6 way head leveling
• Ships UPS in multiple boxes
• Accurate multicolor registration
• Expandable, from 1x1 to 4x6
• Holds up to 21" x 28" screens
• 1 year warranty on manufacturers defects
•(Freight cost included in price.)
Vastex V-1000 Tabletop Printing Presses
Available Models:
• 1 Station/4 Color (V1-T1/4)
V-1000 Printer
The V-1000 upgradeable manual screen press is
designed and priced to meet the needs of the entry
level screen printer.
The V-1000 press uses the industry's most unique
floating head design which minimizes cost. Accurate
registration is achieved without the higher price
associated with machines of this capacity
Standard Features:
• All Models are "All heads down" - allowing for a print station for each color
• Micro-registration - designed for improved responsiveness; Wrench free,
linear & zero backlash!
• Six way screen leveling - Vertical off contact
• FLoating Head, 3 point bearing lock allows multiple heads downs
• Holds up to 21" x 28" (51 x 61 cm)screens
•(Freight cost included in price.)
Pallets:
• Never warp steel, rubber top, level adjustable;
quick release and side ruler for easy locating
• Leg, short leg, sleeve, youth, mini, pocket and oversized,
vacuum and many more! - CUSTOM SIZES AVAILABLE
Vastex T-Shirt Printing Presses
.
® ArtDoggie is a registered trademark of Herwecks Inc. © Copyright 2006 All rights reserved.
"One Stop Shop For Your Creative Mind"
Vastex V-2000 Heavy Duty Manual Rotary Printing Presses
Available Models:
• 4 Station/4 Color (V2HD-4/4)
• 4 Station/6 Color (V2HD-4/6)
• 6 Station/6 Color (V2HD-6/6)
• 4 Station/8 Color (V2HD-4/8)
• 8 Station/8 Color (V2HD-8/8)
• 10 Station/10 Color (V2HD-10/10)
• 1 to 10 stations. All models expandable to 10 station
Standard Features:
• All Models are "All heads down" - allowing for a print station for each color
• Micro-registration - re-designed for improved responsiveness; Wrench free,
linear & zero backlash!
• Six way screen leveling - Vertical off contact
• Gas lifters - with 16 positions for variable lift strength
• 2 3/4" diameter center shaft
• Main hubs turn on tapered roller bearings
• Solid screen arm hinge with zero backlash bearings.
• Ball bearing registration lock close to the screen...
Hides from Spray Adhesive
• Low flex frame - Heavy gauge all steel construction;
all parts anti-rust treated
• Heavy duty rear clamps
• Will fit through 33" doorway
•(Freight cost included in price.)
Pallets:
• Never warp steel, rubber top, level adjustable;
quick release and side ruler for easy locating
• Leg, short leg, sleeve, youth, mini, pocket and oversized,
vacuum and many more! - CUSTOM SIZES AVAILABLE

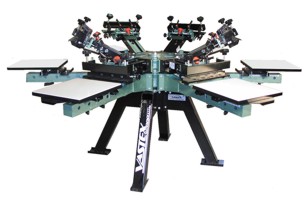

V-2HD-66
6 color/6 station

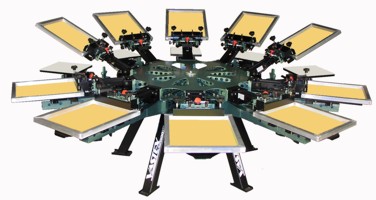

V-2HD-1010
10 color/10 station
