High Performance Series-HP-C Plus
Renowned as the professional's workhorse,
this popular High Performance Series brush
has been pumped up with inspired new
features that include dual-purpose cutaway,
pre-set handle for easy clean up and precise
control of paint flow; Teflon needle packing
for automotive or other solvent-based
paints; larger threads on the nozzle that offer a more secure fit and better centering of the nozzle; redesigned tapered gravity-feed cups that ensure easy clean up and more efficient paint flow; and a single-piece auxiliary lever/needle-chucking guide that provides easy assembly.
A larger 1/3 oz. (9 ml) gravity-feed cup and larger (0.3-mm) needle/nozzle configuration allow for use with most media.

Produces fine hairlines to finely atomized background spray, along with an entire range of stippling effects.

Short paint passageway from the cup to the front of the airbrush gives it a responsive feel and allows it to be one of the quickest airbrushes in the industry

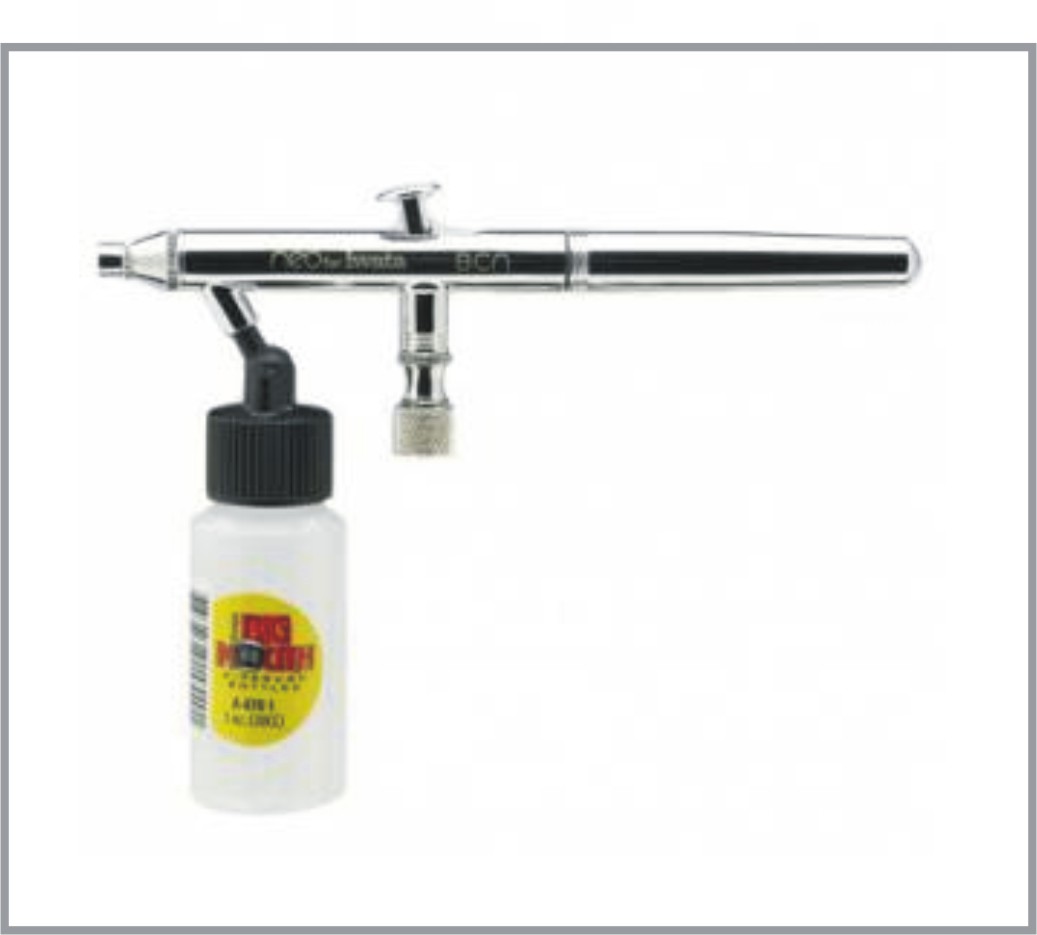

NEO BCN Siphon-Feed Dual-Action Airbrush

When working in medium- to large-sized areas with a larger amount of paint, a siphon-feed airbrush is preferred. Siphon-feed airbrushes require slightly higher air pressures to pull paint up from inside the attached bottle.

Siphon-feed bottles have more paint capacity. And since they are interchangeable, extra bottles can be filled with a variety of colors to make for quick color changes.

Typical siphon-feed airbrush applications include:

• Airbrush Tanning
• Body Art
• Custom Automotive Graphic
• Fine Art
• General Hobbies
• T-Shirt Painting

NEO BCN Technical Specifications Item # N 2000

Needle-Nozzle: Feature a a 0.5-mm needle and nozzle combination for high-performance, general purpose, high paint
flow spraying and wider spray patterns.

Siphon-Feed Bottle: Includes a 1 oz. Big Mouth Bottle. (Also compatible with other sizes of Big Mouth Bottles and Iwata
Bottles.)

Air Pressure: Ideal operation is between 10 and 60 psi.



NEO CN Gravity-Feed Dual-Action Airbrush

Preferred when working in small- to medium-sized areas with small amounts of paint, gravity-feed airbrushes perform well at lower air pressures, which help create greater detail.

The interchangeable gravity-feed cups offer paint capacity options. The larger size offers easy in-cup paint mixing. The medium size makes it easy to see over and good to view the working surface. The no-cup option is great for quick touch-ups when only a tiny amount of paint is needed.

Typical gravity-feed airbrush applications include:

• Cake Decorating
• Bakery Crafts
• Hobbies
• Cosmetics
• Miniature Hobbies
• Crafts
• Illustration
• Finger Nail Art
• Photo Retouching

NEO CN Technical Specifications Item # N 4500

Needle-Nozzle: A unique 0.35-mm needle and nozzle combination for finer detail spraying and medium-sized spray patterns.

Interchangeable Color Cups: Includes interchangeable large (1/3 oz.) and medium (1/16 oz.) cups designed with a funnel shape, which makes for easy clean-up and more efficient paint flow. (Airbrush will hold 1/32 oz. without a cup attached).

Air Pressure: Ideal operation is between 5 and 35 psi. Ideal for use with smaller air compressors.



Revolution-BCR                      122.50
Revolution-CR                        122.50
Revolution-HP-TR2                 294.95
Eclipse-HP-BCS Kit                  189.95
High Performance-HP-C Plus   299.95
Neo-BCN                                  86.99
Neo-CN                                    78.70
Eclipse Series- HP-BCS Kit
This multi-purpose, high-paint-flow, high-
detail Eclipse Series airbrush covers a wide
range of uses. Commonly used to spray
premixed or heavier paints, it is well suited
for uses demanding precise control of
spray when applying moderate-to-large
amounts of paint to a variety of surfaces
and to various-sized areas. This Eclipse Series brush has established a new benchmark for excellence in an all-purpose airbrush. Kit contains:Hose.sample
color & cleaner.
Bottom-feed airbrush features a 0.5-mm needle and nozzle combination

Sets the industry standard for high-performing, general-purpose, high-paint-flow airbrushes

Versatile, reliable performance - this airbrush does it all
Revolution Series-HP-TR2
Featuring a uniquely designed Pistol
Trigger with a fixed dual-action operation,
the Iwata Revolution TR Airbrush delivers
comfortable, ultra-smooth performance
that's ideal for custom automotive painting.
Equipped with the new FA450 Iwata Pistol
Grip Filter that acts as a superior defense
against moisture, the HP-TR2 gives total control over paint and spray just like conventional airbrushes. This design offers the same comfort and feel that's typical of a larger spray gun. Impervious to solvent-based paints thanks to the Teflon packing needle seal, which can be easily replaced.
The HP-TR1 (0.3mm) comes with a 1/4 oz. side-mount color cup, while the HP-TR2 (0.5mm) sports a 1/2 oz. side-mount cup.

Ergonomic, balanced handle makes for easy, level spraying.

The FA450 Pistol Grip Filter can be used with the 1oz. and 2oz. side-mount bottle sets (sold separately).
Revolution Series-CR
The Revolution Series airbrushes
outperforms all others in its price range.
It's features include: an internal mix
airbrush; ergonomic handle design; fine
detail to 1-1/2" spray pattern; larger
nozzle and needle combination (0.5-mm)
that makes for easier spraying of thicker
or heavier paints; redesigned trigger mechanism and larger needle-chucking nut for easy assembly; and replaceable internal Teflon™ needle packing for use with solvent-based paints.

A gravity-feed airbrush designed for quick changes of custom mixed colors.· Versatile for moderate detail to background spraying.

Perfect for general-purpose art-and-craft projects, as well as model-railroad detailing, R/C car bodies, plastic kits and automotive painting.
® ArtDoggie is a registered trademark of Herwecks Inc. San Antonio, Texas © Copyright 2006 All rights reserved.
ArtDoggie.com
Acrylics | Oils | Watercolors | Gouache | Emulsions | Inks | Screens | Squeegees | Heat-Presses | Adhesives | Books | Sign Paints | Portfolios | Vinyl Films | Pastels-Charcoal | Papers | Brushes | Easels | Tables | Lamps | Pens | Markers | Airbrushes | Boards | Canvas | Knives | Pencils | Projectors
Contact Us| Shipping Information

Iwata Airbrushes
.
Shopping Cart]
[My Account]
"One Stop Shop For Your Creative Mind"
Contact Us - 1-800-725-1349
Revolution Series-BCR
The Revolution Series brush is
a great value, with breakthrough
technology and performance,
this airbrush outperforms all
others in it's price range. It's
features include: an internal mix
airbrush; ergonomic handle design; fine detail to
1-1/2" spray pattern; larger nozzle and
needle combination (0.5-mm) that makes for easier spraying of thicker or heavier paints; redesigned trigger mechanism and larger needle-chucking nut for easy assembly; and replaceable internal Teflon™ needle packing for use with solvent-based paints.

Siphon-feed model makes it easy to swap out bottles of specific colors quickly.

Useful for T-shirt painting, model-railroad landscapes, R/C car painting, airplane models and other general art, hobby and craft projects.

Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
